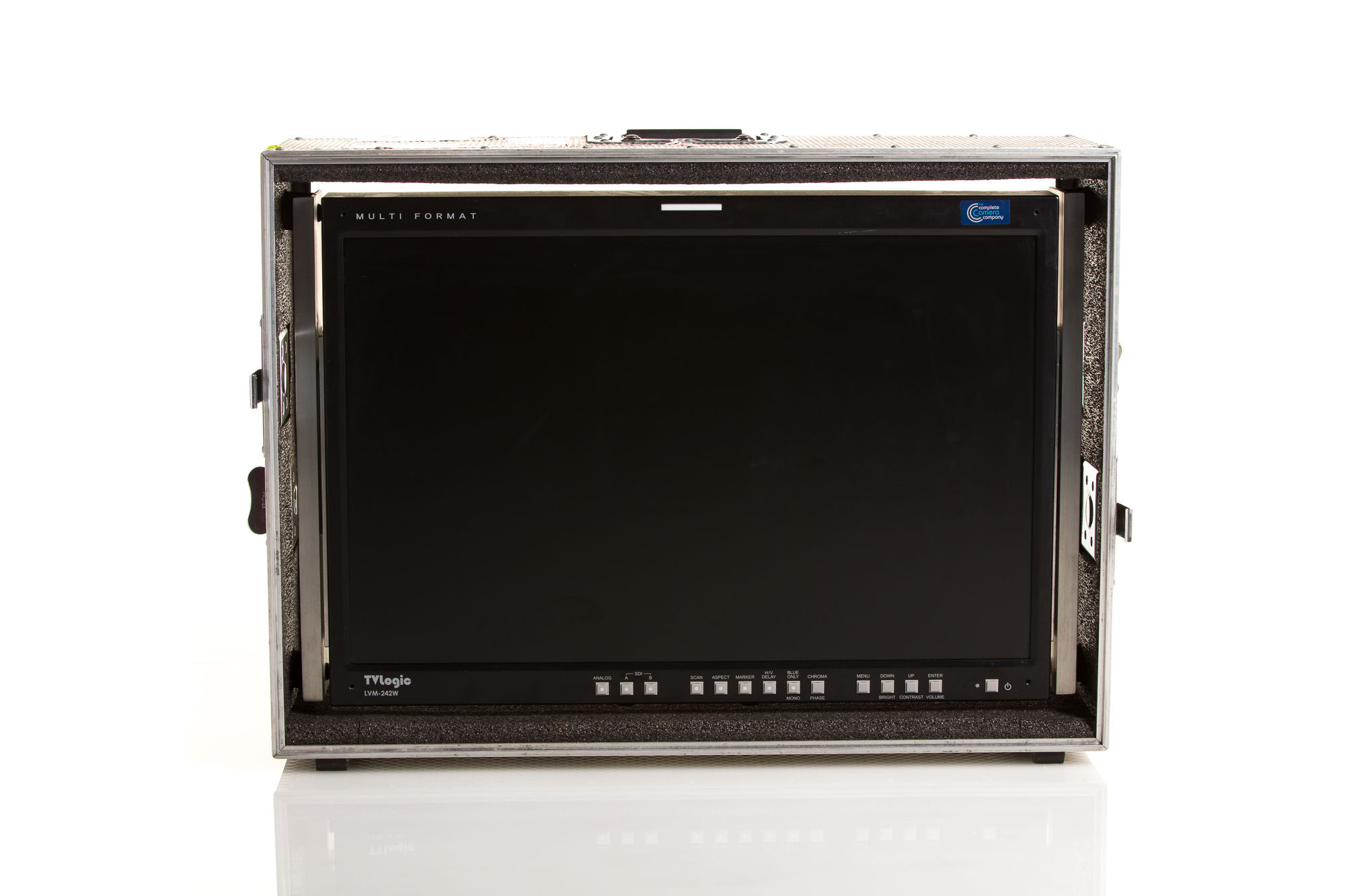

TV Logic LVM-243W 24inch Monitor

TV Logic LVM-243W 24inch Monitor

TV Logic LVM-243W 24inch Monitor

• 24” 1920 x 1080 Native HD Resolution
• Matte Finish Panel
• Supports TVLogic Color Calibration Utility for propercolor alignment
• Firmware update using Ethernet or USB
• GPI (RJ45)
• Waveform/Vectorscope (Y/ Cb/Cr, RGB, Wide Type, LineWaveform)
• Range Error
• Marker
• User Aspect
• Blue Only/Mono
• X3 ZOOM (PBP)
• Key lock
• Selectable 3 function keys
• H/V Delay
• Timecode Display
• UMD support (ANC, Manual, Dynamic & User)
• Closed Caption: CEA- 608/708, OP-42, OP-47 , Line 21, ANC• Monitor control by using RS422/ Ethernet
  • LCD Size 24 inch
    Resolution 1920×1200 (16:10)
    Dot Pitch 0.27 mm
    Colour 16.7M (true), 24-bit
    Viewing Angle (Typical) H : 178 degrees - V : 178 degrees
    Luminance of White 400cd (center)
    Contrast 800:1
    Display Area 518×324 mm
    Input 1 x DVI-I: DVI IN / VGA IN
      1 x HDMI: HDMI IN
      3 x BNC: Analogue Input
      2 x BNC: SDI 2 Channel Input
    Output 3 x BNC: Analogue Loop Through Output
      2 x BNC: SDI A/B Channel Output
    Input Signal Analogue: Composite / S-Video / Component / RGB
      HD-SDI: 1.485Gb/s
      SD-SDI: 270Mbps
      HDMI: 720p / 1080i & VESA / IBM Modes
      DVI-Analogue: 640×480/800×600/1024×768/1280×768/1280×1024/720×400
      DVI-Digital (Graphic): 640×480/800×600/1024×768/1280×768/1280×1024/720×400/1600×1200/1920×1200/1920×1080
      DVI-Digital (Video): 1080p (60/59.94/50)/1080i (60/59.94/50)/720p (60/59.94/50)/480i (59.94)/480p (59.94)/576i (50)
    Analogue Input Spec Compsite: 1.0Vpp (With Sync)
      S-Video: 1.0Vpp (Y With Sync), 0.286 Vpp (C)
      Component: 1.0Vpp (Y With Sync), 0.7 Vpp (Pb, Pr)
      RGB: 1.0Vpp (G With Sync), 0.7 Vpp (B, R)
    SDI Input Signal Formats SMPTE-425M-A/B: 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
      SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
      SMPTE-296M: 720p (60 / 59.94 / 50)
      SMPTE-372M: Dual HD-SDI YPbPr (4:2: 2 ) - 1080p (60 / 59.94 / 50), Dual HD-SDI YPbPr/RGB (4:4:4) - 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 24sF /23.98 / 23.98sF)
      SMPTE-260M: 1035i (60 / 59.94)
      SMPTE-125M: 480i (59.94)
      ITU-R BT.656: 576i (50)
      2K Format: 2048 x 1080p (24/24sF/23.98/23.98sF)
    Audio In Embedded Audio / Analogue stereo (Phone Jack)
    Audio Out Analogue stereo (Phone Jack) / Internal Speaker (Stereo)
    Power AC 100 - 240V / DC 24V
    Power Consumption (Approx.) 112 Watts
    Operating Temperature 0 °C to 35 °C
    Storage Temperature -20 °C to +60 °C
    Dimensions without Stand (WxDxH) 55.2 cm x 9.5 cm x 38.9 cm
    Dimensions with Stand (WxDxH) 58.4 cm x 15.0 cm 41.7 cm
    Weight 11.0 kg
