Sennheiser EW512 G3

Sennheiser EW512 G3

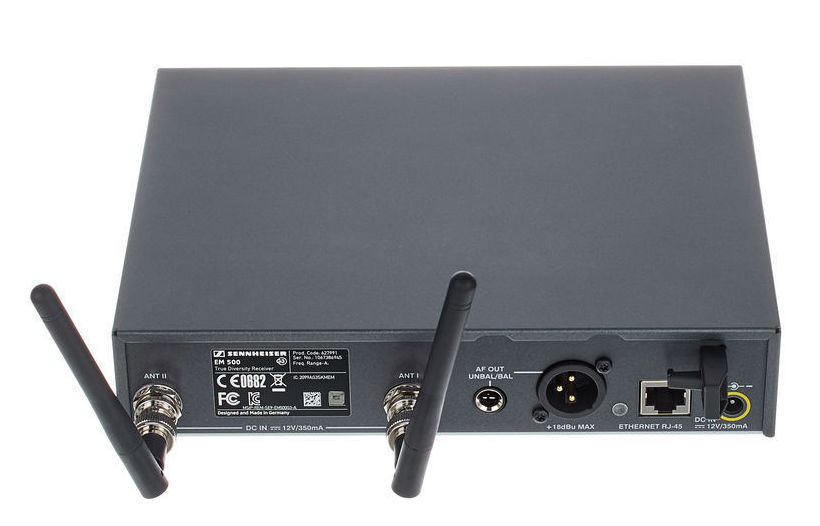

The Sennheiser EW 512 G3 is a wireless lavalier microphone system intended for theatre and video production purposes.  The included MKE-2 EW is a discreet omni-directional electret lav mic that is easily hidden within clothing while still picking up clear and concise speech. The mic then connects to the small SK 500 G3 body-pack transmitter which can be placed on a belt line or within a pocket. Sennheiser’s scan and sync functionality means communication and signal transmission between the transmitter and the EM 500 G3 rack receiver is a quick and easy process.
    • Frequency range
      • 823...865 MHz / Power supply unit UK    503479
      • 780...822 MHz / Power supply unit UK    503476
    • Frequency response (microphone)  80 - 18000 Hz
    • Compander HDX
    • Audio-XLR connector     6,3 mm
    • Presets 32
    • Microphone  electret
    • Sound pressure level (SPL)  142 dB(SPL) max.
    • THD, total harmonic distortion   < 0,9 %
    • Pick-up pattern omni- directional
    • AF sensitivity     6,3 mV/Pa
    • Signal-to-noise ratio       > 115 dB(A)
    • RF output power 10/30 mW
    • Transmission/receiving frequencies        1680
    • Switching bandwidth      42 MHz
    • Peak deviation  +/- 48 kHz
    • In compliance with ETS 300422, ETS 300445, CE, FCC
    • Antenna connector 2 BNC, 50 Ω
    • Input voltage range  1,8 V, line
    • Audio output level unbalanced: Jack : +12 dBu max, balanced: XLR : +18 dBu max
