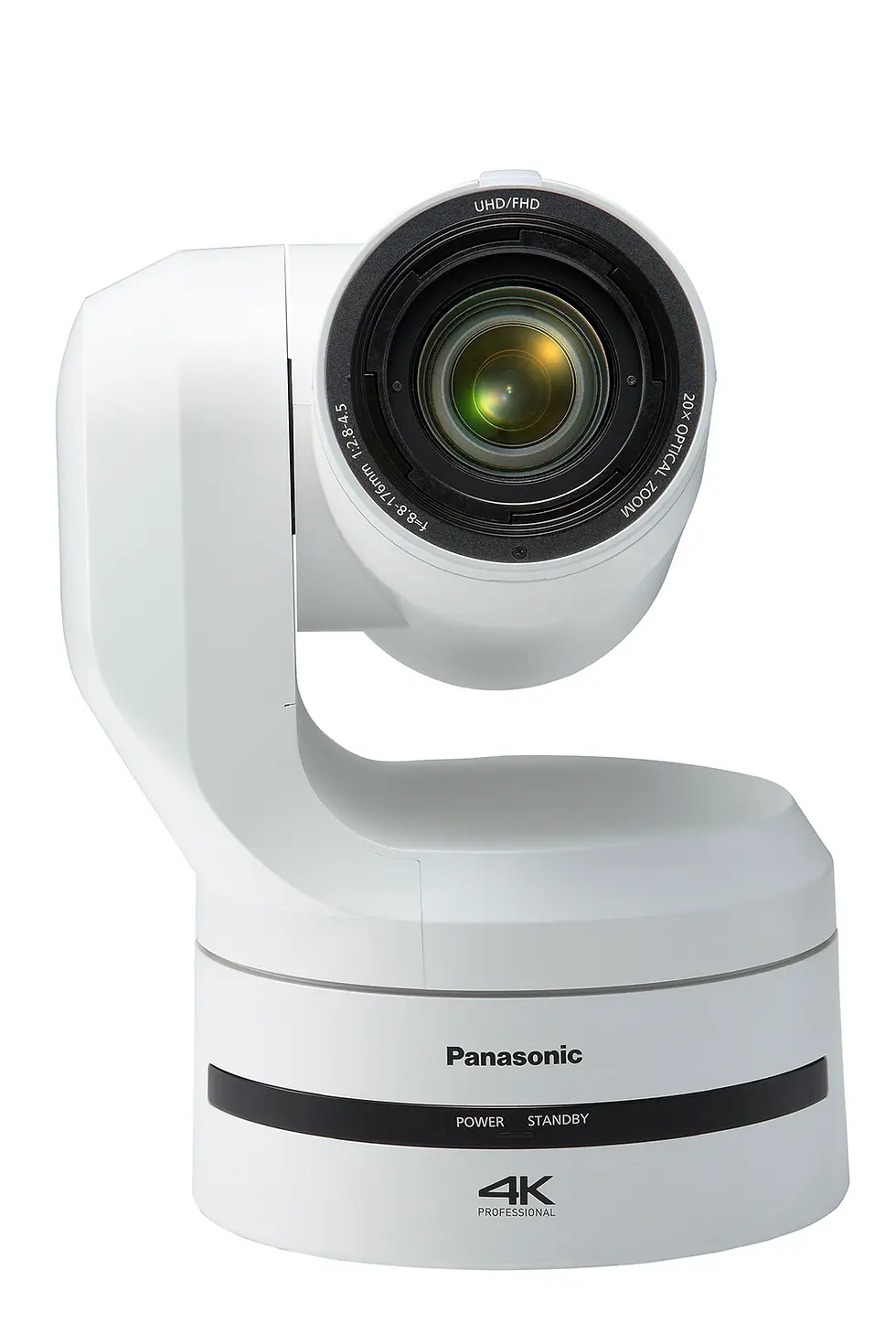

Panasonic AW-UE150 KEJ 4K

Panasonic AW-UE150 KEJ 4K

The next-generation PTZ camera supports high-quality video production in stadium, lecture halls, churches and other venues. Smooth and high-quality 4K 60p/50p, high-magnification zoom and a wide shooting angle expand the range of the PTZ camera's applications. The camera is equipped with a variety of interfaces and supports simultaneous 4K/HD operation which allows for versatility in current and future production systems.
  • General
    Power Requirements 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
    Current Consumption 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
    Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
    Ambient Operating Humidity 20 % to 90 % (no condensation)
    Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
    Mass Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
    Dimensions (W x H x D) 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
    (excluding protrusions, direct ceiling mount bracket)
    Finish AW‑UE150WP/AW‑UE150WE: Pearl white
    AW‑UE150KP/AW‑UE150KE: Black
    Controller Supported AW-RP150GJ, AW-RP50*1, AK-HRP1000GJ*1
    Camera Unit
    Imaging Sensors 1-type 4K MOSx1
    Effective Pixels 20,180,000 pixel
    Lens Motorized Optical 20x zoom, F2.8 to F4.5
    [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
    35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
    Zoom • Optical zoom: 20x
    • i.Zoom: UHD 24x, FHD 32x
    • Digital zoom: 10x
    Conversion Lens Not supported
    Angle of View Range Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
    Vertical angle of view: 46.7° (wide) to 2.3° (tele)
    Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
    Optical Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
    Focus Switching between auto and manual
    Focus Distance Entire zooming range: 1000 mm (3.3 ft)
    Wide end: 100 mm (0.33 ft)
    Color Separation Optical System 1MOS
    Standard Sensitivity F9, 2000 lx (When normal mode is selected)
    Minimum Illumination 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
    S/N 60 dB or more
    Horizontal Resolution 2,000 TV lines Typ (Center area)
    Gain Selection Auto, -3 dB to 36 dB*2
    Super Gain function equipped : +37 dB to 42 dB
    Frame Mix*3 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
    Electronic Shutter Speed 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
    Synchro Scan 59.94p/59.94i 60.00 Hz to 7200 Hz
    29.97p 30.00 Hz to 7200 Hz
    23.98p/24p 24.00 Hz to 7200 Hz
    50p/50i 50.00 Hz to 7200 Hz
    25p 25.00 Hz to 7200 Hz
    Gamma HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
    White Balance ATW : 3200K, 5600K
    ATW Speed : Normal / Slow / Fast
    AWB : AWB-A / AWB-B
    VAR (selectable between 2000K and 15000K by designating a value)
    Chroma Amount Variability OFF, –99 % to 99 %
    Scene File Scene1, Scene2, Scene3, Scene4
    Output Format 4K 2160/59.94p, 2160/50p, 2160/29.97p*4, 2160/25p*4, 2160/24p*4, 2160/23.98p*4
    HD 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5,
    1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
    Synchronization System
      Internal/External synchronization (BBS/Tri-level sync)
    Input
    Input Connector DC 12 V IN, G/L IN (BNC)
    • BBS (Black Burst Sync), tri-level sync supported
    Output
    Video Output HDMI HDMI 2.0 standard
    4:2:2/10bit
    • HDCP is not supported.
    • Viera Link is not supported.
    12G-SDI OUT SMPTE 2082‑1 standard / 75 Ω (BNC x 1)
    3G-SDI OUT SMPTE424M/SMPTE292 / 75 Ω (BNC x 1)
    • Level-A/Level-B supported
    MONI OUT SMPTE292 / 75 Ω (BNC x 1)
    Optical Fiber SFP+ standard
    • This unit does not support input by optical signals
    Input/Output
    Input/Output Connector LAN LAN connector for IP control (RJ‑45)
    RS-422 CONTROL IN RS-422A (RJ‑45)
    MIC/LINE input AAC compatible (compatible with IP only)
    ø 3.5 mm stereo mini jack
    Input impedance: High impedance
    • During MIC input
    Supported mic: Stereo mic (plug-in power, on/off switching via menu)
    Supply voltage: 2.5 V ± 0.5 V
    Mic input sensitivity: Approx. –40 dBV ± 3 dBV (0 dB=1 V/Pa, 1 kHz)
    • During LINE input
    Input level: Approx. –10 dBV ±3 dBV
    Pan-tilt Head Unit
    Camera/Pan-tilt Head Control IP connecting cable LAN cable*6*7: (category 5e or above, straight cable / crossover cable), max. 100 m (328 ft)
    AW protocol connecting cable LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft)
    Installation Method Stand-alone (Desktop) or suspended (Hanging)*8
    Pan/tilt Operation Speed Minimum speed 0.08°/s
    Maximum speed 60°/s or higher*9
    • Maximum speed is 180°/s in high-speed mode
    Panning Range ±175°
    Tilting range –30° to 210°*10
    Quietness NC35 or less
    Supported Operating Systems and Web Browsers*11
    Supported Operating Systems and Web Browsers Windows Microsoft® Windows® 7, 10 Windows® Internet Explorer® 11 (64‑bit/32‑bit)
    Microsoft Edge Google Chrome
    Mac Mac OS 10.13, Mac OS 10.12, Mac OS 10.11
    Safari 11, Google Chrome
    iPhone / iPad iOS 11.4.1
    Google Chrome
    IP Streaming
    Image Streaming Mode JPEG (MJPEG), H.264, H.265
    Image Resolution 3840x2160, 1920x1080, 1280x720, 640x360, 320x180
    Image Transmission Setting (JPEG) Frame Rate: Maximum 30 fps
    Image quality (Fine / Normal)
    Image Transmission Setting (H.264) Transmission Type Unicast port (AUTO)
    Unicast port (MANUAL)
    Multicast port
    Transmission Priority Constant bit rate
    Frame rate
    Best effort
    Frame Rate [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
    [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
    Max Bit Rate HD:
    512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps /
    8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps /
    32768kbps / 40960kbps / 51200kbps / 76800kbps

    UHD:
    12800kbps / 25600kbps / 51700kbps / 76800kbps
    Image Transmission Setting (H.265) Transmission Type Unicast port (AUTO)
    Unicast port (MANUAL)
    Multicast port
    Frame Rate [60Hz] 30fps
    [50Hz] 25fps
    Max Bit Rate 8192kbps / 12800kbps / 25600kbps / 51200kbps / 76800kbps
    Audio Compression Type AAC-LC, 48 kHz / 16 bit / 2ch
    Supported Protocol IPv6 TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
    IPv4 TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
