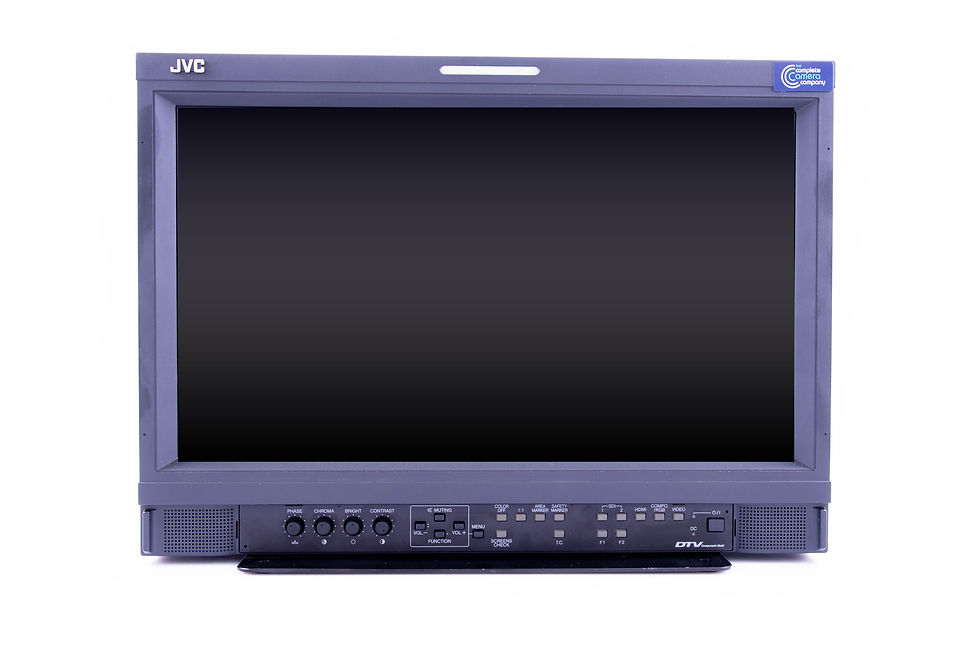

JVC DT-V17G2 17inch Monitor

JVC DT-V17G2 17inch Monitor

The DT-V17G2 monitor has an extremely wide viewing angle, with excellent chromatic aberration properties, with 10-bit processing offering improved grey shades and gradation.  It features an integrated waveform monitor, vectorscope and histogram, where you can display values for colour saturation, brightness and input signals. The DT-V17G2 also includes a 10-bit signal processing with 8-bit colour depth. In addition to regular HD-SDI support, the monitors have a 3G HD-SDI interface to enable 1080p (non-compressed digital video data) with a data rate of up to 3Gb/s transfer.

  • Type Multi Format LCD Monitor
    Screen Size Type 16.5 wide format
    Aspect Ratio 16:09
    Horizontal /Vertical Frequency (Computer signal)
    H 31.467kHz-75.000kHz
    V 49.990Hz-75.062Hz
    Dual Link HD SDI SMPTE372M
    HD SDI BTA S-004C, SMPTE292M
    SD SDI ITU-R BT.656: 525/625
      SMPTE259M: 525
    Embedded Audio SMPTE229M, SMPTE272M
    Audio Output
    Internal Speaker 1.0W+1.0W
    Operating Conditions
    Operating Temperature 5-35 Degrees
    Operating Humidity 20-80%
    Power Requirements AC 120 V / AC 220 V - 240 V, 50 Hz/60Hz or DC 12V - 17V
    Rated current 0.30A (AC 220 V - 240 V)
      3.7A (DC 12 V - 17 V)
    External Dimensions
    With Stand
    WxHxD 130x349.6x212.9mm
    Weight 8.2kg
    Without Stand
    WxHxD 430x309x102mm
    Weight 5.8kg
    LCD Panel
    Type 21in wide, active matrix TFT
    Effective Screen Size
    WxHxDiagonal 476.1x267.8x546.2mm
    Number of Pixels Displayed 1920x1080
    Number of Colours Displayed 16.77million
    Viewing Angle (TYP) 178x178Degrees
    Brightness (TYP) 300cd/m2
    Contast Ratio (TYP) 1500:01:00
